![Prisual NDI PTZ Camera 30X with Auto Tracking HDMI, USB, 3G-SDI, IP,TEM-30N Pro](http://www.prisual.us/cdn/shop/files/NDI-30X_{width}x.png?v=1688206383)
NDI PTZ Camera, 30x Optical + 8x Digital Zoom,3G-SDI+USB+HDMI+IP Streaming Outputs, Support NDI, Support POE.
Main Features
●30x Optical + 8x Digital Zoom
High quality super telephoto lens, 30x optical zoom, and 8x digital zoom.
●H.265 Support
H.265 ecoding, enabling transmit full HD 1080p video stream by ultra-low bandwidth.
●1080P Full HD
Apply Panasonic's high quality HD CMOS sensors of 1/2.7 inch, 2.07 million effective pixels, so as to reach maximum 1920 x 1080 resolution and achieve quality image.
●Ultra-high Frame Rate
The output frame rate up to 60fps in 1080P.
●AAC Audio Encoding
Support AAC audio encoding, better sound quality and smaller bandwidth.
●Local Storage
Support U disk local storage, local recording directly without NVR.
●Low-light
High quality CMOS sensor and 2D/3D noise reduction can reduce image noise.The Image is still clear and sharp even in low light enviroment, and the SNR is high more than 55dB.
●Multiple Interfaces
Support HDMI , 3G-SDI interface, effective transmission distance up to 150 meters (under 1080p30). HDMI, SDI, Network can output at the same time. It also support CVBS interface.
●Remote Control
Using RS232 and RS485 interface, all the parameters of the camera can be controled remotely.
Camera | |
Video System |
HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25, 640x480p/240 SD: 480i, 576i |
Sensor | 1/2.7'', CMOS, Effective Pixel: 2.07M |
Scanning Mode | Progressive |
Lens | 30x, f4.42mm ~ 132.6mm, F1.8 ~ F2.8 |
Digital Zoom | 8x |
Minimal Illumination | 0.5 Lux @ (F1.8, AGC ON) |
Shutter | 1/30s ~ 1/10000s |
White Balance | Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual |
Backlight Compensation | Support |
Digital Noise Reduction | 2D&3D Digital Noise Reduction |
Video S/N | ≥55dB |
Horizontal Angle of View | 60.7° ~ 2.28° |
Vertical Angle of View | 34.1° ~ 1.28° |
Horizontal Rotation Range | ±170° |
Vertical Rotation Range | -30° ~ +90° |
Pan Speed Range | 1.7° ~ 100°/s |
Tilt Speed Range | 1.7° ~ 69.9°/s |
H & V Flip | Support |
Image Freeze | Support |
PoE | Support (802.3af) |
Local Storage | Support |
Number of Preset | 255 |
Preset Accuracy | 0.1° |
Video Compression | H.265 / H.264 / MJEPG |
Video Stream | Main Stream, Sub Stream |
Main Stream Resolution | 1920x1080, 1280x720, 1024x576 |
Sub Stream Resolution | 720x576, 720x480, 320x240 |
Video Bit Rate | 128Kbps ~ 8192Kbps |
Bit Rate Type | Variable Rate, Fixed Rate |
Frame Rate | 50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps |
Audio Compression | AAC |
Audio Bit Rate | 96Kbps, 128Kbps, 256Kbps |
Support protocols | TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc. |
HD Output |
1xHDMI: Version 1.3 1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard |
SD Output | 1xCVBS: 3.5mm mini jack, 1Vp-p, 75Ω |
Network Interface | 1xRJ45: 10M/100M/1000M Ethernet Interface,Support PoE power supply |
Audio Interface | 1-ch: 3.5mm Audio Interface, Line In |
USB | 1xUSB2.0: Type A female jack |
Communication Interface |
1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P 1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only 1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P |
Power Jack | JEITA type (DC IN 12V) |
Input Voltage | DC 12V |
Current Consumption | 1.0A (Max) |
Operating Temperature | -10°C ~ 40°C (14°F ~ 104°F) |
Storage Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
Power Consumption | 12W (Max) |
Size | 169mm x 142mm x 164mm |
Net Weight | 1.35Kg (3.0lb) |
Full HD 1080P @60fps Resolution with Full Frame Rates: 1080p-60/50/30/25, 1080-60/50, 720p-60/50/30/25. Broadcast Frame Rates Available: 1080p59.94/29.97, 1080i59.94, 720p59.94.
30X optical zoom lens with advanced auto focus technology. Target your subject fast and accurate. With multi model like Auto focus, manual focus, auto white balance, manual white balance and more.
NDI HX2 supports(License approved by Newtek Inc.). With this Leading IP technology, NDI Camera supports Power, Video/Audio and Control, over a single Ethernet cable, simplifying the installation and setup of live streaming systems.

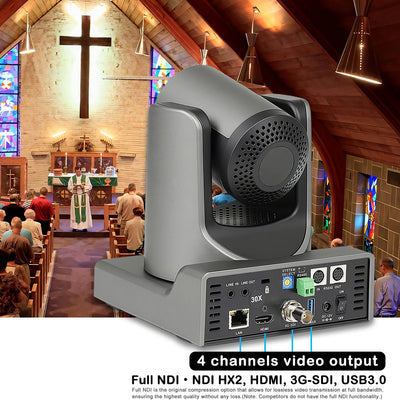

Simultaneous 3G-SDI, IP and HDMI Video Outputs for connection flexibility. Multi Control: RS232 & RS485 (Serial), IP (LAN/WAN) & NDI|HX Control. 3.5mm Line in, audio embeded on HDMI and IP/NDI. Communication Protocols: VISCA, Onvif, Pelco-D, Pelco-P
✔️Worry free local after-sales service: 30 days no reason returned back,24-month warranty,Lifetime Customer Supports. any questions or need any help, please feel free to contact us by email for technical support online 24 hours.
